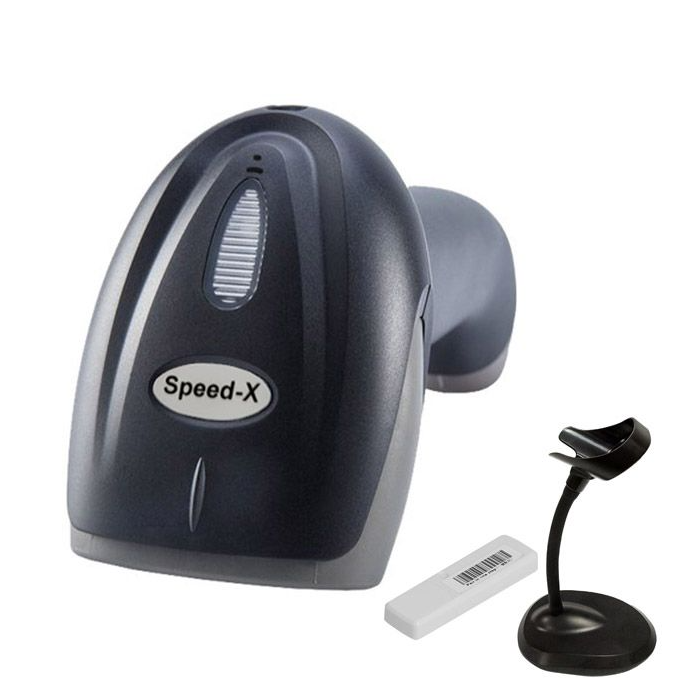

SPEED-X 60D 2D Wirless 2.4Ghz barcode scanner With Stand

Title: SPEED-X 60D 2D Wirless 2.4Ghz barcode scanner With Stand

Description: SPEED-X 60D 2D Wirless 2.4Ghz barcode scanner With Stand –

Detail:

(2D CMOS Wireless 2.4G Handheld Barcode Scanner)

Technical Parameters

Wireless specifications

Communications 2.4GHz

Communication frequency 2.402 to 2.480GHz

Transmission range ≤30M（In empty area 30M ）

Data rate 1Mbps

Memory 100000@13Byte barcode

Battery capacity 1500mAh (Lithium battery)

Charging time 4.5H

The life time of the full charge 4h（continuous reading situation）

9.5h（Manual reading situation）

More than 15 days （Stand-by time)

Communication mode Read-time mode/Inventory mode

Electrical Characteristics

Interface USB HID KEYBOARD（Wireless receiver）

Voltage requirement Max:120mA

Min：50mA

Optical Characteristics

Photo sensor CMOS array sensor

SENSOR RESOLUTION 648 X 488 Pixels

Light source White LED

Aim light source Red Bar LED

Performance Characteristics

Decode angle Pitch angle:±60°;Skew angle:±60°;Tilt angle:±180°

Min resolution 1D≥4mil

2D≥10mil

Min.PCS value 〉15% UPC/EAN 13（13mil）

Field of View 46°(H),35°(V)

Identification 1D： Codabar，Code128，Code11，Code32，Code39，Code93，Composite，EAN/UPC,EAN-8,EAN-13,GS1 DataBar Expanded，GS1 DataBar Limited，GS1 DataBar Omnidirectional，Hong Kong 2 of 5（China Post），Interleaved 2 of 5，Matrix 2 of 5 Pharmacode. RSS-14,RSS-LIMITED, RSS-EXPANDED, Industrial 2 of 5,Telepen,Trioptic Code, UPC-A,UPC-E

2D：Aztec Code，Codablock F，DOT_CODE, HANXIN, Maxicode，MicroPDF417，Micro QR Code，MSI，PDF417,QR Code, DataMatrix

Physical Characteristics

Dimensions Scanner：95mm×70mm×168mm（L x W x H）

Receiver：83mm*18mm*13mm(L*W*H)

Weight Scanner：186g

Receiver：16g

Environmental Characteristics

Temp 0°∽50°C / 32°∽122°F(operation) /-10°∽60°C /14°∽140°F(storage)

Humidity 20 – 85% (operation) ) 20 – 95% (storage)

Shock drop test 1.5m drop onto concrete surface

Ambient Light: fluorescent light 4000 lx max ,

direct sun light 80,000 lx max ,white light 4000 lx max

Decoding Depth of Field

Symbology Resolution Nearest Farthest

Code 39 20mil 5.5cm 35cm

Code 128 15mil 6cm 31cm

EAN-13 13.34mi 6cm 25cm

QR code 20mil 4cm 21cm

PDF417 13.34mil 3cm 29cm
